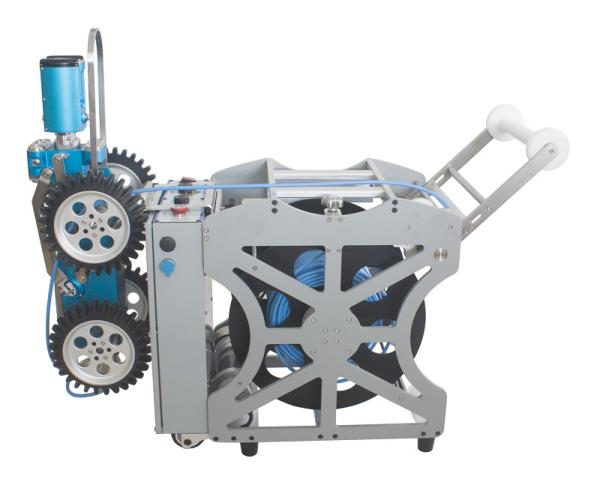

300-2000mm CCTV Pipe Inspection Equipment Anti Fogged Camera Lens

Brand Name : Trio-Vision

Model Number : TVS-2000E

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 20units per month

Delivery Time : 4-8 weeks

Packaging Details : CARTON

Name : 2000mm CCTV Pipe Inspection Equipment

Application : Traffic , Petrifaction

Inspection range : 300-2000mm

Camera Lens : Anti Fogged Camera Lens

Camera rotate : 360°

Control : Joystick

Cable drum : manual

Feature : High Resolution

Contact Now

300-2000mm CCTV Pipe Inspection Equipment Anti Fogged Camera Lens

CCTV Pipe Inspection Equipment Features:

1. Light weight
2. Light and easy transport
3. Anti-fogged camera lens
4. 360 degree rotate of camera

CCTV Pipe Inspection Equipment Technical Parameter

Controller300-2000mm CCTV Pipe Inspection Equipment Anti Fogged Camera Lens1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000300-2000mm CCTV Pipe Inspection Equipment Anti Fogged Camera Lens1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
Cralwer TVS-800300-2000mm CCTV Pipe Inspection Equipment Anti Fogged Camera Lens1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120300-2000mm CCTV Pipe Inspection Equipment Anti Fogged Camera Lens1,Manual cable drum
2,standard length: 120m
Joystick300-2000mm CCTV Pipe Inspection Equipment Anti Fogged Camera Lens

(1)high beam brightness adjustment

(2)camera control, left/right/up/down

(3)camera zoom in/out/focus near/far/center

(4)power switch

(5)elevator up/down/clutch/rear sight/camera light adjustment

(6)crawler direction control, forward/backward/left/right

(7)crawler speed control

(8)USB

(9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected


CCTV Pipe Inspection Equipment Configuration

Standard ConfigurationOptional Parts
TVS800 crawlerJT60 axial camera
JT-2000 pan & tilt cameraJT360 fish-eye camera
Manual cable drumAutomatic cable drum
Windows LaptopPA500 portable movable power
Joysitck
